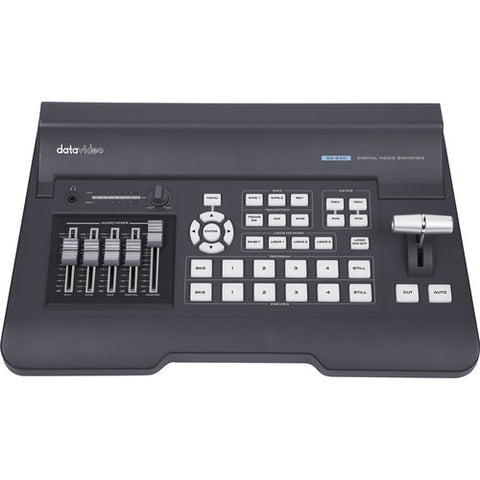

Datavideo SE-650, 4 Input HD digital video switcher

Name: Datavideo SE-650, 4 Input HD digital video switcher
Brand: Datavideo
SKU: SE-650
Price: 1199.00 USD
Availability: InStock

Vendor: Datavideo

Descriptions Datavideo SE-650, 4 Input HD digital video switcher The Datavideo SE-650 combining a four-channel HD video switcher and a 6-channel audio mixer, the Datavideo SE-650 is an all-in-one solution for live video production. Video...

$1,199.00

Default Title

Subtotal:

Quantity

Descriptions

Datavideo SE-650, 4 Input HD digital video switcher

The Datavideo SE-650 combining a four-channel HD video switcher and a 6-channel audio mixer, the Datavideo SE-650 is an all-in-one solution for live video production. Video and embedded audio can be imported using two HD-SDI and two HDMI inputs; audio can also be brought in through analog inputs. The multiple video outputs enable you to send video to multiple locations. The output section is configurable, so you can choose which output is your multiview, and which are your program outputs. Having multiple program outputs means that you can have one output recorded separately, and one output sent to a streaming server for live broadcast online. Use the control surface to switch angles in real time, apply effects, transitions, and fades to facilitate professional production value. Additional connections for expanding your I/O options include 1/4" microphone inputs and analog RCA audio, Ethernet, tally, and USB for firmware updates.

Datavideo SE-650 Main Features

Any Input can be used as a frame (stills) store
Assignable outputs: Program (with DSK), Clean Program (without DSK), Clean Preview (without DSK), Multiview
Frame sync on each input
Flexible mix effects processor with one upstream keyer, supporting chroma key, and linear/luma key
One upstream PiP, supporting chroma key and luma key
Wipe generator: 32 wipe patterns including shapes with border and softness control
Full mix effects preview function
Logo insertion
XPT (Cross Point Assignment)
Tally output
Six-channel audio mixer
Supports embedded audio
Multi-language support

Specifications

Video Standard	HD
Video Format	1080i 50/59.94/60Hz 720p 50/59.94/60Hz
Video Processing	SDI: 4:2:2 HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4
Input Routable / Crosspoint	All 4, repeatable
Video Input	2x HD-SDI 2x HDMI
Computer Graphic Interface	2 via HDMI
Video Output	2 x HDMI (1 is MV, 1 is Assignable) 1 x HD-SDI (Assignable)
Built-in Multi-view Monitoring Out	HDMI & SDI assignable
Analogue Audio Input	1 x Stereo RCA (L/R) 2 x Mono Microphone
Analogue Audio Output	1 x Stereo RCA (L/R) 1 x Stereo headphone (Mini Jack with volume control)
Digital Embedded Audio Support	Input 2 channels, Output 2 channels
A+V Switching	Yes
Chromakey	2
USK	2x Keyer support Chromakey/ Linear/ Luma Key
DSK	1x DSK support Lumakey/ Linear key (Key / Fill)
Picture in Picture	1
Logo Insertion	1
Still Store	500
Effects	FTB, Cut, 32 Wipe with border
Transition Preview	Full transitions preview
Sync / Reference In/Out	Built-in Genlock (internal)
Tally Output	1x D-sub 15pin, dual color
PC Remote Control	DVIP (Ethernet)
Built-in Audio Mixer	Yes, 4 channels
Special Features	Free Virtual Set and Stinger transition included
Chassis	Unibody
Dimension (LxWxH)	400 x 250 x 82 mm
Weight	1.9 kg
Power	DC 12V, 29W
Operating Temp. Range	0~40 °C
Options	CB-46/47/60/61/62
What's in the Box	1 x SE-650 product 1 x AD Switch DC 12V with AC Cord 1 x Thank You Card
